Description

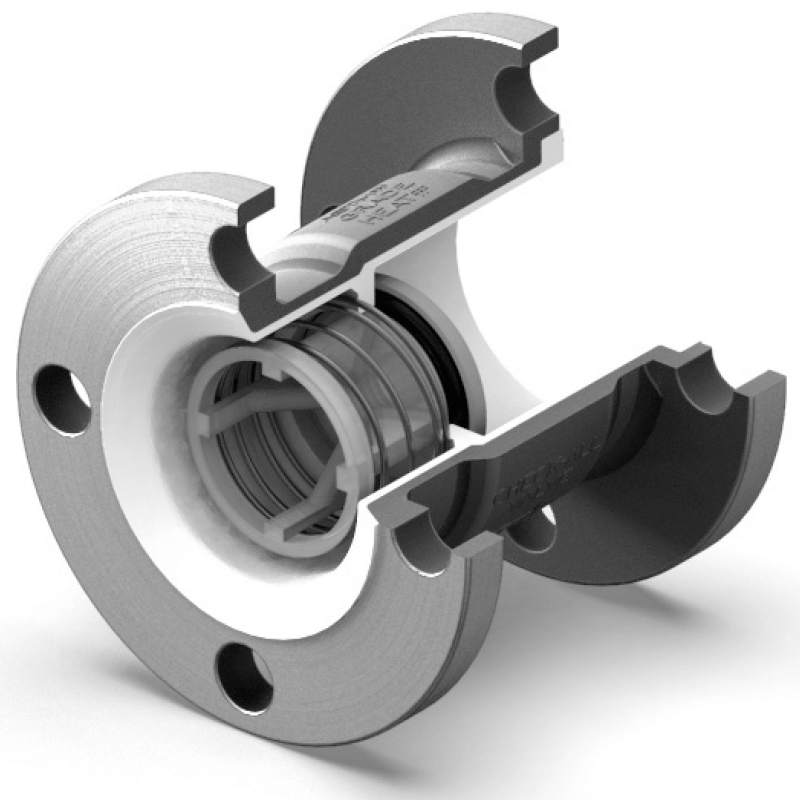

The Check-All Flanged & Drilled – Fluoropolymer PTFE Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece PTFE liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (PTFE/FEP/PFA) including the FEP encapsulated stainless steel spring. Style HT bodies are made of cast Carbon Steel only. The liner is made of virgin PTFE. It is installed as one solid piece of PTFE and the internal geometrical shape is machined. The PTFE liner has a minimum wall thickness of 3/32 inch which guarantees against pin holes which can be present in fused liners.
| Nominal Pipe Size | Size Code | A | B | Orifice* Diameter |
|---|---|---|---|---|
| 1 | H | 3.75 | 4-1/4 | 0.890 |
| 1-1/2 | J | 4.38 | 5 | 1.385 |
| 2 | K | 5.13 | 6 | 2.025 |
| * WCB/WCC Carbon Steel (CS) |
| Body Material | Liner Material | Nominal Pipe Size | Non-Shock Pressure-Temperature Rating |
|---|---|---|---|
| WCB/WCC Carbon Steel (CS) | PTFE (TF) | 1" | 55 PSIG @ 100° |
| 1-1/2" - 2" | 20 PSIG @ 100° | ||
Seat material and spring material selection may limit the recommended service temperature.
See seat ratings, spring ratings, and body material ratings for their respective recommended service temperatures.
Consult the factory for reduced P-T rating above 100 °F. Standard spring material is 316 Stainless Steel.
PRESSURE DROP PSI
| 1 | 12.6 |
|---|---|
| 1-1/2 | 34.5 |
| 2 | 83.0 |
WATER FLOWRATE - GPM
Note: All flow curves and Cv values presume the valves are fully open with 1/2 PSI cracking pressure springs. Consult the factory for more information.
| SIZE | PART NUMBER | PTFE LINED |
|---|---|---|
| 1 | HTHCS | 3.7 lb. |
| 1-1/2 | HTJCS | 5.8 lb. |
| 2 | HTKCS | 9.4 lb. |
| Valve Style | Size Range | Body Materials Other Options | Allowable Seat Materials Other Options | Standard Cracking Pressures Other Options More Info. | Standard Spring Material More Info | Standard Spring Material More Info. |
|---|---|---|---|---|---|---|
| HT | 1" - 2" | PTFE Lined C. Steel | AFLAS® Buna-N Kalrez® "Metal to Metal' | Neoprene PTFE Viton® | 1/2 PSI | FEP Encapsulated 316 SS |
