For over 50 years, the compact, fluoropolymer (PTFE/FEP/PFA), Sanitary Insert Valve has been used as the most economical solution to providing a check valve in a new or existing sanitary piping system. This valve style is designed to fit into grooved-end clamp-type fittings. Since the Sanitary Insert Valve replaces the gasket normally used with clamp joints, no extra space is required to accommodate the valve.
PED Compliance Statement: Due to the unique “insert” design of our 3S, SC, TC, SI, & UV, style check valves, they do not constitute an “identifiable pressure bearing housing” as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as “components of pressure equipment” as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required.In addition applicaitons where the maximum allowed oerating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.

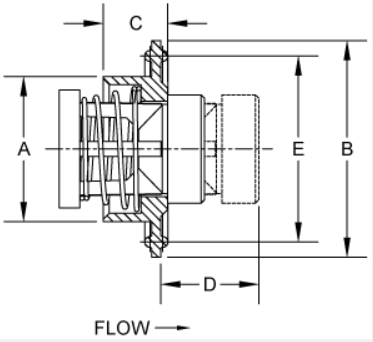

Size & Dimension

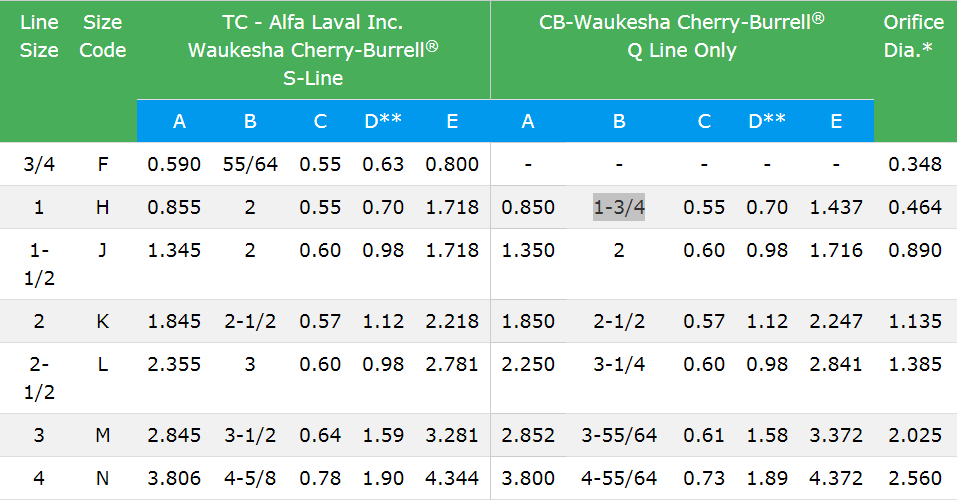

NOTES (DIMENSIONS TABLE)*Due to molding process, orifice may vary.
**Maximum nominal dimension for a fully open valve with no spring.Consult factory for more information
Available Materials
PTFE (TF)
Pressure Temperature Table
Body Material
Line Size
Non-Shock Pressure-Temperature Rating
PTFE (TF)
3/4"- 2"
55 PSIG @ 100 °F
2-1/2 " - 4"
20 PSIG @ 100 °F
Seat material and spring material selection may limit the recommended service temperature.
See seat ratings, spring ratings, and body material ratings for their respective recommended service temperatures.
Consult the factory for reduced P-T rating above 100 °F. Standard spring material is 316 Stainless Steel.
Flow Data
PRESSURE DROP PSI
Size
Cv
3/4
2.4
1
4.6
1-1/2
9.5
2
20.9
2-1/2
37.0
3
76.0
4
141
FOR WATER AT 72°F

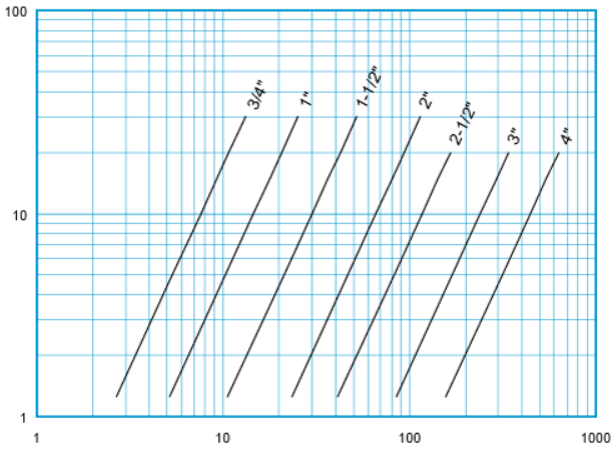

WATER FLOWRATE - GPM
Note: All flow curves and Cv values presume the valves are fully open with 1/2 PSI cracking pressure springs. Consult the factory for more information.
Valve Weights
SIZE
PTFE
3/4
0.2 oz.
1
0.6 oz.
1-1/2
1.1 oz.
2
1.8 oz.
2-1/2
2.3 oz.
3
5.1 oz.
4
11.2 oz.
Seat & Cracking Pressure Options
Valve Style
Size Range
Body Materials
Other Options
Allowable Seat Materials
Other Options
Standard Cracking Pressures
Other Options
More Info.
Standard Spring Material
More Info.
SIV
3/4" - 2"
PTFE
AFLAS®
Buna-N
FDA AFLAS®
FDA Buna-N
EPDM/FDA EPDM
FDA Viton®
Kalrez®
"Metal to Metal"
Neoprene
Viton®
1/8 PSI
1/2 PSI
1.5 PSI
3.5 PSI
316 SS
SIV
2-1/2" - 4"
PTFE
AFLAS®
Buna-N
FDA AFLAS®
FDA Buna-N
EPDM/FDA EPDM
FDA Viton®
Kalrez®
"Metal to Metal"
Neoprene
Viton®
What is the TC Sanitary Insert Check Valve designed for?
The TC is a compact sanitary insert check valve designed to provide reliable one-way flow control in new or existing sanitary piping systems.
How does the TC valve install?

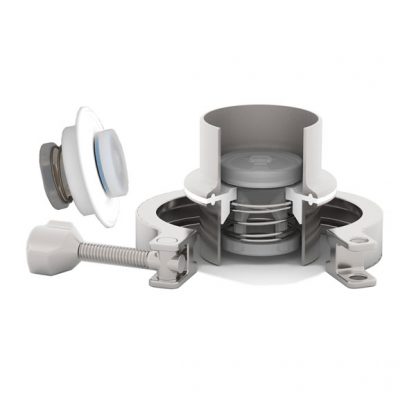

It fits into grooved-end clamp-type fittings and replaces the gasket normally used with the clamp joint, so no additional piping space is required.
What materials are used in the TC Series?
The Sanitary Insert Valve is available in fluoropolymer materials, including PTFE, FEP, and PFA, for sanitary and corrosion-resistant applications.
Are ferrules and clamps included with the valve?
No. The valve is shown installed in ferrules; ferrules and the clamp are not included with the TC valve.
Does the TC Series require a CE mark under PED?
The TC is an insert-style component that must be installed into ferrules or fittings to create the pressure-bearing housing. Under PED Guideline 1/8, it is classified as a component of pressure equipment and does not require a CE mark.
